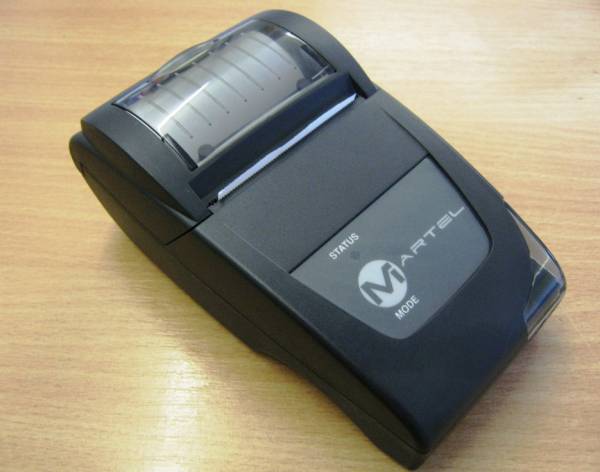

MCPK1880

MCPK1880
MCPK1880
Demander un devis

Caractéristiques

  • Easy open paper feature
  • High resolution thermal printing
  • Quiet, non-impact system
  • Maintenance-free
  • Compact and light weight
  • High reliability
  • Versatile, for use with text or graphics
  • 12, 16, 24(default), 32, 42 or 48 characters per line
  • Suitable for paper and label printing
  • Windows driver for Win 7 (32) / Vista(32) / XP(32) and
  • 2000
  • Linux and WinCE 5.0 / 6.0 drivers available
  • 48mm diameter paper roll support
  • Interface—RS232 + flash update capability
  • AA NiMh battery Operation, (Alkaline as backup option)
  • Integral Magnetic Clamping
  • USB
  • Bluetooth



Optional

  • Real Time clock with backup battery
  • Non battery versions, 5V dc, or 10-35Vdc Input Power

Caractéristiques techniques

Printing method
Direct thermal line head
Paper width (mm)
58
Paper capacity
48mm diameter
Recommended paper
TF50-KS- E2D
Printing speed (mm/s)
10 lines of text per second (max)
Weight (g)
400g approx (inc batteries and paper)
Power supply
Charger for battery version: MCP1880 9V (Centre negative) / Power supply for non-battery versions: MCP1880X 5-8Vdc - MCP1880V 10-35Vdc
Character set
UK / United States (437)
Character size
3mm x 2mm, 3mm x 1.5mm or 3mm x 1mm (Approx. 13, 17 or 25cpi)
Characters per line (max.)
48, 32, 24(default), 16 and 12
Character matrix
24x8, 24x9, 24x12 or 24x16
Horizontal dot pitch
0.125mm (Approx. 200dpi)
Vertical dot pitch
0.125mm
Text line composition
24x384 dots
Interfaces
RS232 Data format - Default, 1 Start, 8 Data, 1 Stop, No Parity) / Baud rates - 300, 600, 1200, 2400, 4800, 9600 & 19200, 38400, 57600 & 115200 / Handshaking - Hardware (CTS line) or Software (XON/XOFF) / Bluetooth Class 1 Bluetooth (SPP)
Country codes
USA, France, Germany, UK, Denmark I/II, Sweden, Italy, Japan, Norway, Spain I/II
