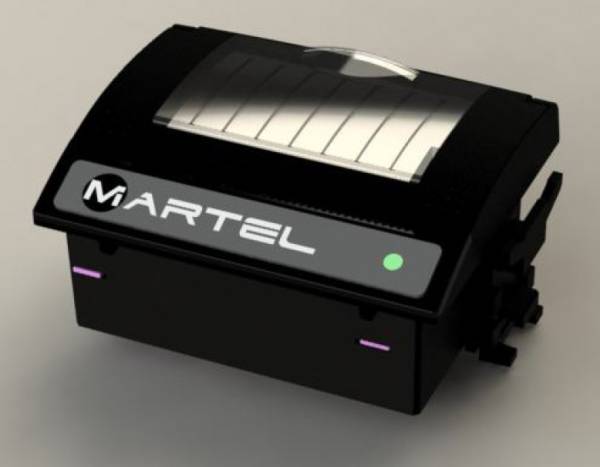

MPP2000

MPP2000
MPP2000
Demander un devis

Caractéristiques

  • Fast-load paper loading feature
  • High resolution thermal printing
  • 5-8Vdc standard, 10-35Vdc / low power options
  • Interfaces - RS232 and USB
  • Adjustable clip mounting
  • Quiet, non-impact system
  • Maintenance-free
  • Compact and light weight
  • High reliability
  • Versatile, for use with text or graphics
  • 12, 16, 24, 32 or 48 characters per line
  • Suitable for paper and label printing
  • Windows driver for Win 7 / Vista / XP and 2000
  • Linux and WinCE 5.0 / 6.0 drivers available
  • Flash upgradeable firmware
  • 32mm diameter paper roll support



Options

  • Interface options - RS485, TTL
  • Bezel—Black, Off White, Custom

Caractéristiques techniques

Printing method
Direct thermal line head
Printing width (mm)
48
Printing speed (mm/s)
MPP2000/MPP2020: 13 lines of text per second (max) / MPP2010: 2 lines of text per second (max)
Power supply
MPP2000/MPP2010: 5-8 Vdc / MPP2020: 10-35Vdc
Dimensions (WxDxH mm)
Panel cut-out 78.8 x 59mm / MPP2000/MPP2010 83 x 67 x 47mm / MPP2020 83 x 67 x 66mm
Character set
UK / United States (437)
Character size
3mm x 2mm, 3mm x 1.5mm or 3mm x 1mm (Approx. 13, 17 or 25cpi)
Characters per line (max.)
48, 32, 24(default), 16 and 12
Character matrix
8x24, 9x24, 12x24 or 16x24
Horizontal dot pitch
0.125mm (Approx. 200dpi)
Vertical dot pitch
0.125mm
Text line composition
24x384 dots
Interfaces
USB USB v2.0 / Serial / Data format RS232 (Default, 1 Start, 8 Data, 1 Stop, No Parity) / Baud rates 300, 600, 1200, 2400, 4800, 9600 & 19200, 38400, 57600 & 115200 / Handshaking Hardware (CTS line) or Software (XON/XOFF)
Country codes
USA, France, Germany, UK, Denmark I/II, Sweden, Italy, Japan, Norway, Spain I/II
