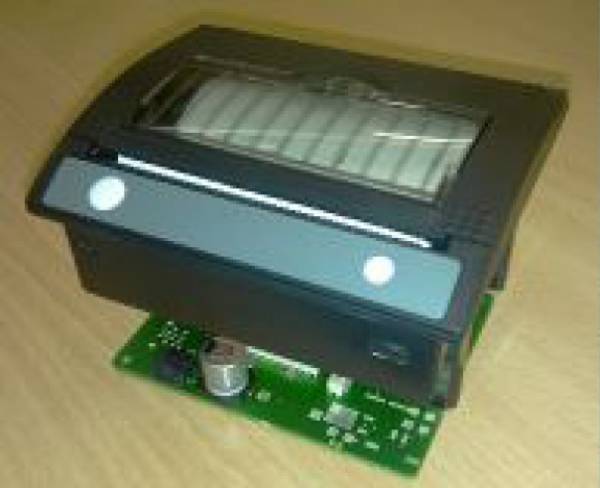

MPP3000

MPP3000
MPP3000
Demander un devis

Caractéristiques

  • Fast-load paper loading feature
  • High resolution thermal printing
  • 5-8Vdc standard, 10-35Vdc / low power options
  • Interfaces – RS232 & USB
  • Adjustable clip mount, and panel screw mount
  • Panel mounting by adjustable clips, or screws
  • Quiet, non-impact system
  • Maintenance-free
  • Compact and light weight
  • High reliability
  • Versatile, for use with text or graphics
  • 18, 24, 36 (default), 48, 72 characters per line
  • Suitable for paper and label printing
  • Windows driver for Win 7 / Vista / XP and 2000
  • 60mm diameter, 80mm width paper roll support
  •

Options

  • Interface options - RS485, TTL
  • Bezel—Black(default), Off White, Custom
  • Real Time clock with backup battery
  • Customised control membrane / keys / LED’s

Caractéristiques techniques

Printing method
Direct thermal line head
Printing width (mm)
72
Paper width (mm)
80
Paper capacity
60mm diameter
Power supply
MPP3000/MPP3010 5-8 Vdc / MPP3050 10-35Vdc
Dimensions (WxDxH mm)
MPP3000 series 107.5 x 95 x 75 / Panel cut-out 98.5 x 85 mm
Character set
UK / United States (437)
Character size
3mm x 2mm, 3mm x 1.5mm or 3mm x 1mm (Approx. 13, 17 or 25cpi)
Characters per line (max.)
18, 24, 36 (default), 48, 72 characters per line
Character matrix
8x24, 12x24 or 16x24
Horizontal dot pitch
0.125mm (Approx. 200dpi)
Vertical dot pitch
0.125mm
Text line composition
576x24 dots
Interfaces
USB USB v2.0 / Serial / Data format RS232 (Default, 1 Start, 8 Data, 1 Stop, No Parity) / Baud rates 300, 600, 1200, 2400, 4800, 9600 & 19200, 38400, 57600 & 115200 / Handshaking Hardware (CTS line) or Software (XON/XOFF) / Buffer size 5 Kbytes
Country codes
USA, France, Germany, UK, Denmark I/II, Sweden, Italy, Japan, Norway, Latin America, Spain I/II
Current consumption
MPP3000 4A peak / MPP3010 2A Peak / MPP3050 2.7A @ 10V, 1.75A @ 15V, 1.5A @ 20V, 1.2A @ 25V, 1.1A @ 30V, 1A @ 35V peak
