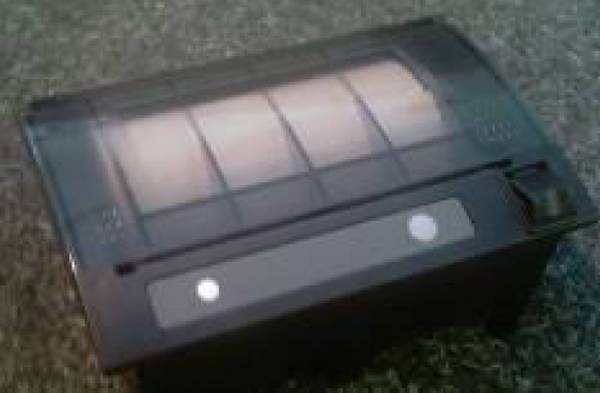

MPP4000 Series

MPP4000 Series
MPP4000 Series
Demander un devis

Caractéristiques

  • Fast-load paper loading feature
  • High resolution thermal printing
  • 5-8Vdc standard, 10-35Vdc / low power options
  • Interfaces – RS232 & USB
  • Panel screw mounting
  • Panel screw mount or panel clamping bezel
  • Quiet, non-impact system
  • Maintenance-free
  • Compact and light weight
  • High reliability
  • Versatile, for use with text or graphics
  • 26, 34, 52(default), 69, 104 characters per line
  • Suitable for paper and label printing
  • Windows driver for Win 7 / Vista / XP and 2000
  • Flash upgradeable firmware
  • 60mm diameter / 112mm width paper roll support

Options

  • Interface options - RS485, TTL
  • Bezel—Black(default), Off White, Custom
  • Real Time clock with backup battery
  • Customised control membrane / keys / LED’s

Caractéristiques techniques

Printing method
Direct thermal line head
Printing width (mm)
104
Paper width (mm)
112
Paper capacity
60mm diameter
Power supply
MPP4000/MPP4010 5-8 Vdc / MPP4050 10-35Vdc
Dimensions (WxDxH mm)
MPP4000 series 158mm x 110mm x 75mm / Panel cut-out 140 x 103 mm
Character set
UK / United States (437)
Character size
3mm x 2mm, 3mm x 1.5mm or 3mm x 1mm (Approx. 13, 17 or 25cpi)
Characters per line (max.)
26, 34, 52(default), 69, 104 characters per line
Character matrix
8x24, 12x24 or 16x24
Horizontal dot pitch
0.125mm (Approx. 200dpi)
Vertical dot pitch
0.125mm
Text line composition
832x24 dots
Interfaces
USB USB v2.0 / Serial / Data format RS232 (Default, 1 Start, 8 Data, 1 Stop, No Parity) / Baud rates 300, 600, 1200, 2400, 4800, 9600 & 19200, 38400, 57600 & 115200 / Handshaking Hardware (CTS line) or Software (XON/XOFF) / Buffer size 5 Kbytes
Country codes
USA, France, Germany, UK, Denmark I/II, Sweden, Italy, Japan, Norway, Spain I
Current consumption
MPP4000 4A peak / MPP4010 2A Peak / MPP4050 2.7A @ 10V, 1.75A @ 15V, 1.5A @ 20V, 1.2A @ 25V, 1.1A @ 30V, 1A @ 35V peak
