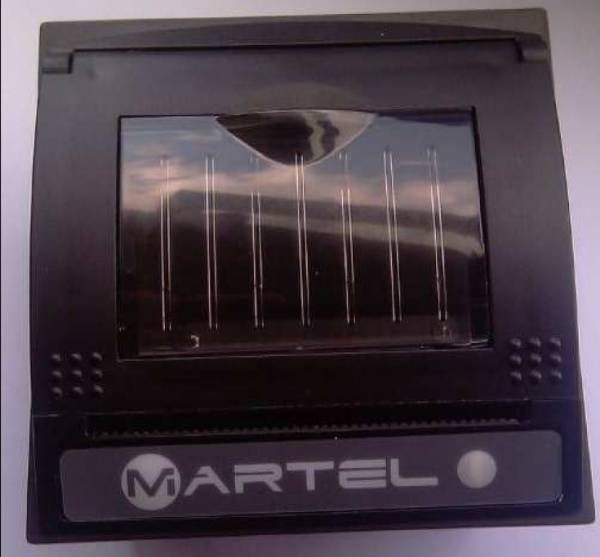

MPP6500 Series

Caractéristiques

  • Easy load paper feature
  • High resolution thermal printing
  • 5-8Vdc standard, 10-35Vdc / low power options
  • Panel screw mount
  • Quiet, non-impact system
  • Maintenance-free
  • Compact and light weight
  • High reliability
  • Versatile, for use with text or graphics
  • 12, 16, 24, 32 or 48 characters per line
  • Suitable for paper and label printing
  • Windows driver for Win 7 / Vista / XP and 2000
  • Linux and WinCE 5.0 / 6.0 drivers available
  • 32mm diameter paper roll support

Options

  • Interface—RS232, RS485, TTL, USB, Parallel
  • Bezel—Black, Off White, Custom
  • Alternative PCB Connectors—Molex KK, 43xxx and Molex 51021

Caractéristiques techniques

Printing method
Direct thermal line head
Printing width (mm)
48
Paper width (mm)
58
Paper capacity
32mm diameter
Printing speed (mm/s)
MPP6500/MPP6520: 10 lines of text per second (max) / MPP6510: 2 lines of text per second (max)
Power supply
MPP6500/MPP6510 5-8 Vdc / MPP6520 10-35Vdc
Dimensions (WxDxH mm)
MPP6500 series 83mm x 85.1mm x 30mm / MPP6520 83mm x 85.1mm x 48mm / Panel cut-out 73.6 x 73.6mm
Character set
UK / United States (437)
Character size
3mm x 2mm, 3mm x 1.5mm or 3mm x 1mm (Approx. 13, 17 or 25cpi)
Characters per line (max.)
48, 32, 24(default), 16 and 12
Character matrix
24x8, 24x12 or 24x16
Horizontal dot pitch
0.125mm (Approx. 200dpi)
Vertical dot pitch
0.125mm
Text line composition
24x384 dots
Interfaces
USB USB v2.0 / Serial / Data format RS232 (Default, 1 Start, 8 Data, 1 Stop, No Parity) / Baud rates 300, 600, 1200, 2400, 4800, 9600 & 19200, 38400, 57600 & 115200 / Handshaking Hardware (CTS line) or Software (XON/XOFF) / Parallel / Input Data Format 8
Country codes
USA, France, Germany, UK, Denmark I/II, Sweden, Italy, Japan, Norway, Latin America, Spain I/II
Current consumption
MPP6500 4A peak / MPP6510 2A Peak / MPP6520 2.7A @ 10V, 1.75A @ 15V, 1.5A @ 20V, 1.2A @ 25V, 1.1A @ 30V, 1A @ 35V peak
