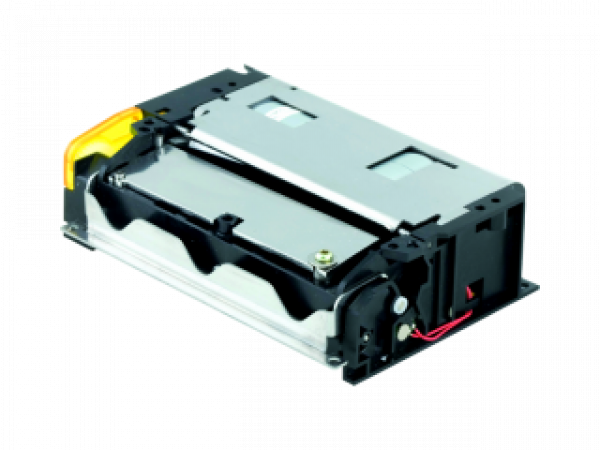

HSP3128

ULTRA COMPACT, HEAVY DUTY PRINTER

Caractéristiques

Full easy loading (roll and cutter), patent pending
Ultra compact design (width is 125 mm, height is 35.7 mm, length is 82.5 mm)
Up to 190 mm/s printing speed
Cuts paper up to 220 µm (10 mils)
12V operation voltage
High resolution printing (8 dots/mm)
Heavy duty mechanism: 200 km, 2 million cuts (paper thickness: 63 µm and 190 µm)
Black mark / top of form detection for label printing
Low noise due to its technology (thermal)

Applications

ATM machines
Data terminal devices
Fiscal printers
Gas pumps
ID automation
Kiosks
Parking meters
Ticketing
Vending machines

Caractéristiques techniques

Printing method: Thermal
Number of dots: 640
Resolution (dots/mm): 8
Printing width (mm): 80
Paper width (mm): 80 to 82.5
Max. paper thickness (um): 220
Paper loading: Easy loading
Printing speed (mm/s): 190
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Mechanical switch
Voltage range (Logic | Head): 5V or 3.3V ± 5% / 12 typ, 16 v max
Dot resistance (Ohm): 300 ± 3%
Energy per dot (mJ): 0.16
Stepper motor (Ohm): 13

Weight (g): 450
Life/reliability: 200 km/ 100 M pulses/ 2 M cuts
Operating temperature (°C): -20 to +70
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 125x82.5x35.7
Cutter: 2M cuts
Character set: Two resident, easy upgrades
Character size: 12x24, 9x17 pixels, user fonts - any
Interfaces: Serial, USB 2.0
Graphics: Powerful graphic printing modes
Barcodes: UPC-A, UPC-E, EAN13, CODE39, ITF and CODABAR
Windows drivers: Yes
Label/Black mark detection: Left or Right
Functional keyboard: Yes
