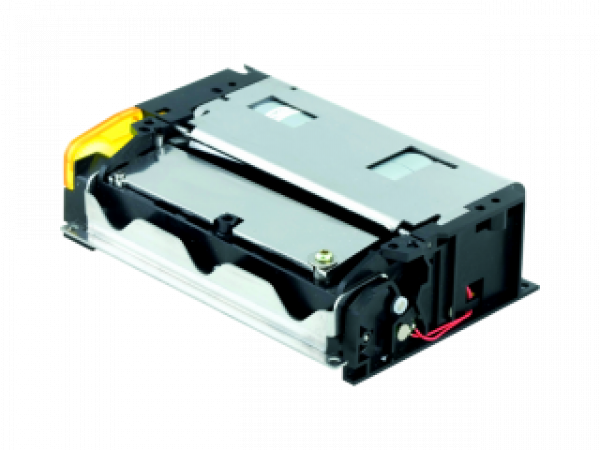

HSP3208-86

ULTRA COMPACT, HEAVY DUTY PRINTER

Caractéristiques

86 mm paper width - special edition for railway ticketing industry
Full easy loading (roll and cutter)
Up to 300 mm/s printing speed (11.8 ips)
Cuts paper up to 220 µm (10 mils) in less than 550 ms (80 µm in less than 240 ms)
24V operation
Heavy duty mechanism: 200 km, 2 million cuts (paper thickness: 63 µm and 190µm)

Applications

ATM machines
Gaming and lottery
Gas pumps
ID automation
Kiosks
Parking meters
Ticketing
Vending machines

Caractéristiques techniques

Printing method: Thermal
Number of dots: 640
Resolution (dots/mm): 8
Printing width (mm): 80
Paper width (mm): 86
Max. paper thickness (um): 220
Paper loading: Easy loading
Printing speed (mm/s): 300
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Mechanical switch
Voltage range (Logic | Head): 3.3 to 5 V | 24 typical, 26.5 V max
Dot resistance (Ohm): 650 ± 3%

Energy per dot (mJ): 0.13
Weight (g): 450
Life/reliability: 200km/ 100M pulses
Operating temperature (°C): -20 to +70
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 125x82.5x35.7
Cutter: 2M cuts
Interfaces: Serial, USB 2.0
Graphics: Powerful graphic printing modes
Barcodes: UPC-A, UPC-E, EAN13, CODE39, ITF and CODABAR
Windows drivers: Windows, Linux
Label/Black mark detection: Yes
